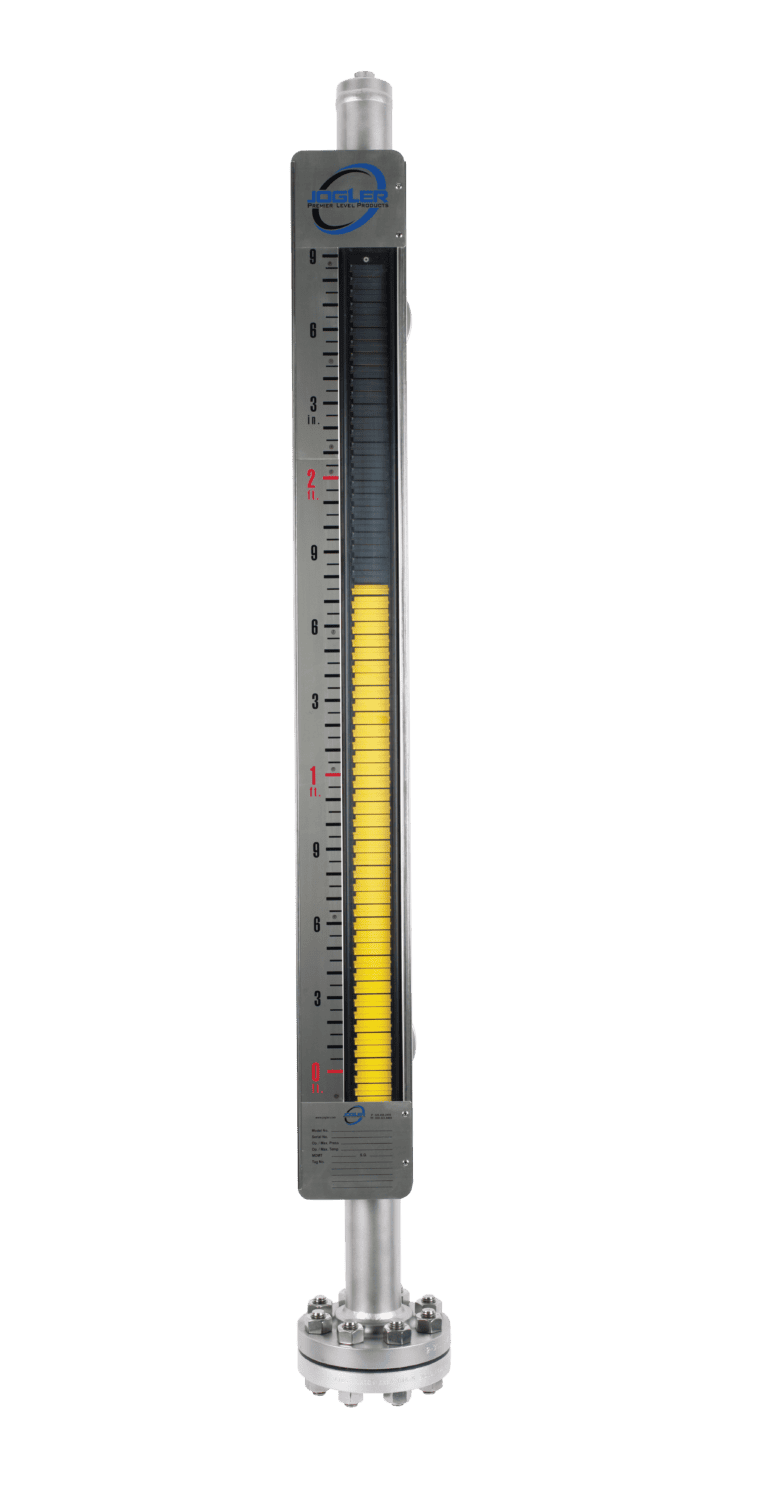

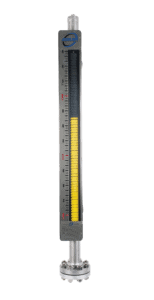

JMG Single- and Dual-Chamber
Magnetic Level Gauges
Jogler JMG magnetic level gauges provide a safe and economical solution for liquid level measurement and control across a wide range of process pressures, temperatures, and fluids. Engineered for reliability and maintenance-free operation, each single-chamber magnetic level gauge and dual-chamber magnetic level gauge is custom-designed to meet precise application requirements.
From the chamber to the float and indicator, every component has been meticulously engineered to elevate performance beyond existing designs. From our certified facility in Baton Rouge, Louisiana, Jogler products are shipped to customers across the U.S. and around the globe.
Single Chamber Magnetic Level Gauge and Dual Chamber Magnetic Level Gauge Solutions
JMG magnetic level gauges offer high flexibility in terms of design, custom components, and materials. Our engineering and manufacturing processes ensure compliance with the highest industry standards. We fabricate ASME B31.1/B31.3 compliant level gauges, with all welding performed in accordance with ASME Section XI standards. For applications requiring the highest level of certified construction, we offer optional ASME Code U and S stamped gauges and PED-compliant gauges.
Engineered for Extreme Conditions
The robust construction of the JMG series makes it suitable for the most demanding process environments.
- High-Temperature Service: As a high-temperature magnetic level gauge, the JMG operates in temperatures from -320°F to 1000°F (-196°C to 538°C).
- High-Pressure Service: As a high-pressure magnetic level gauge, it handles pressures from full vacuum to 5000 psig (345 bar).
- Material Options: Chambers are available in a wide range of materials, including 316/304 SS, Hastelloy C, Inconel, Titanium, and CPVC, to ensure compatibility with diverse process fluids.
In addition to its durability, the JMG series also offers precision and accuracy in level measurement. With our optional ASME Code U and S stamped gauges, you can have confidence in the reliability of your measurements. These gauges are designed to meet industry standards for safety and performance, giving you peace of mind when it comes to monitoring your process levels.
One key feature of the JMG series is its ability to operate in extreme conditions. Whether it’s high temperatures or pressures, this magnetic level gauge is engineered to withstand even the most challenging environments. With a temperature range from -320°F to 1000°F (-196°C to 538°C) and a pressure capability of up to 5000 psig (345 bar), the JMG series is built to last.
Advanced Design Features

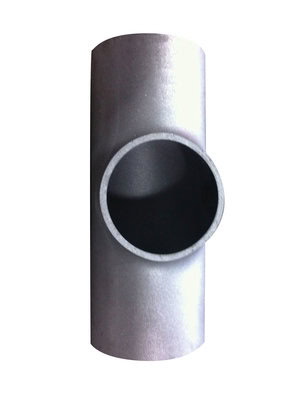

Jogler’s single-chamber magnetic level gauge and dual-chamber magnetic level gauge models incorporate superior design elements to ensure reliable performance. We use extruded outlets to create branch connections, which provide a smooth, full-bore float path and eliminate the chamber distortion common with welded fittings.

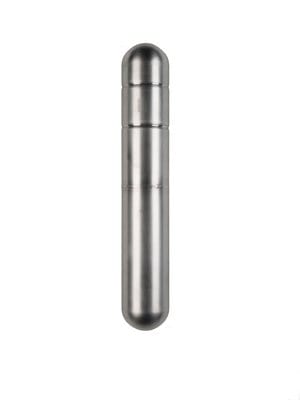

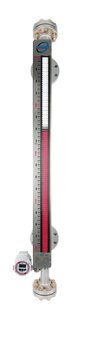

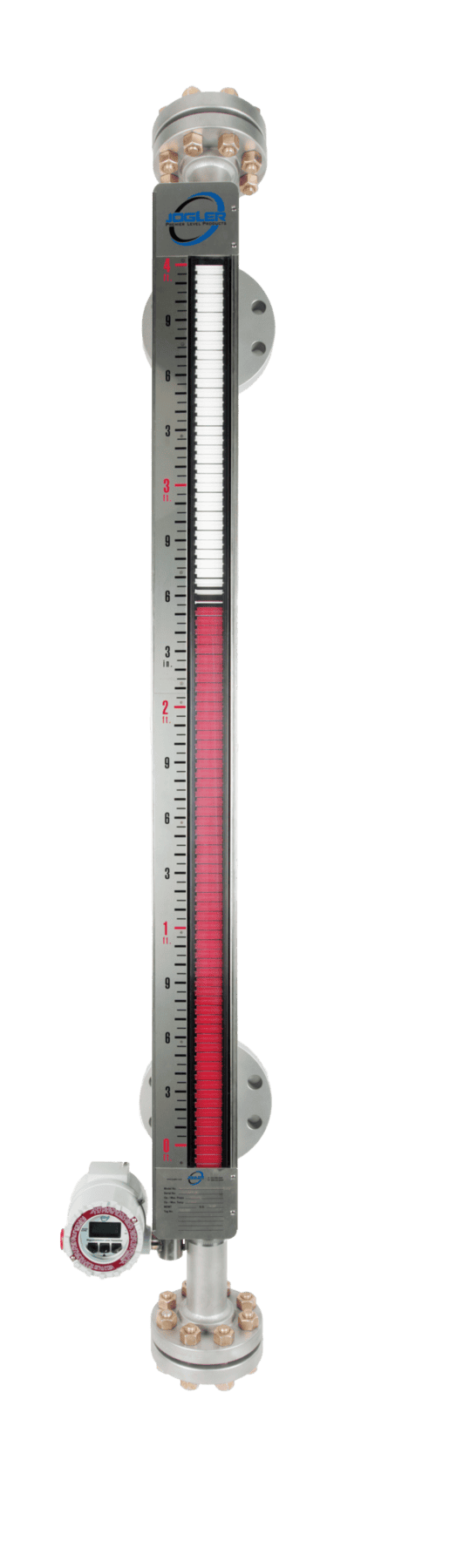

Our deep-drawn floats minimize welds, thereby reducing the likelihood of stress cracking and failure. For enhanced process control, the single-chamber magnetic level gauge can be coupled with a magnetostrictive level transmitter and/or Jogler point level switches. A dual-chamber magnetic level gauge configuration enables the installation of redundant level measurement technologies on a single set of process connections.
