Jogler Model ILT-6000
Direct Insertion Magnetostrictive Level Transmitter

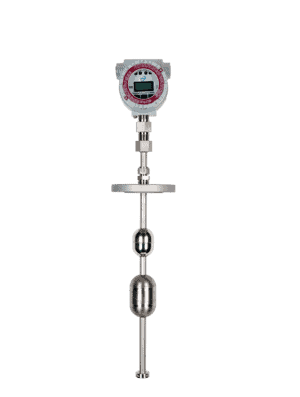

The ILT-6000 Direct Insertion Magnetostrictive Level Transmitter is a loop powered non-contact level measurement device that can be installed directly into a process vessel. Utilizing the magnetostrictive principle and time-of-flight calculations allow the ILT-6000 to provide a fast and accurate measurement of float position and, ultimately, liquid level in the gauge. The ILT-6000 is installed in an isolation well assembly allowing the transmitter to be removed, serviced, or replaced with no process interruption.
- 2 wire, loop powered (24VDC nominal)

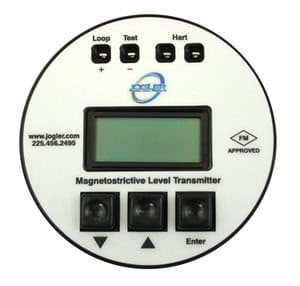

- LCD Display (4-20mA, %, in, and/or cm)
- Generic HART communication
- Quick-Cal function for simple recalibration
- Isolated from process pressure
- Long Measuring Lengths (up to 35ft)

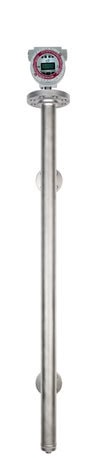

- Isolation Well assembly
- Dual level outputs (total level and interface)
- Epoxy-Coated Aluminum Enclosure
- Class I, Division 1, Groups A, B, C, D
- Class II and Class III, Division 1, Groups E, F, G
- Class I, Division 2, Groups A, B, C, D
- Class II and Class III, Division 2, Groups E, F, G
- Intrinsically Safe Class I / II / III, Division 1, Groups A, B, C, D, E, F, G
- NEMA 4X
Jogler offers the Direct Insertion Magnetostrictive Level Transmitter (ILT-6000), designed for accurate, reliable liquid level measurement. This transmitter ensures precise readings for industrial tanks, vessels, and process systems. Its direct insertion design reduces installation complexity while delivering high-performance monitoring, making it ideal for industries like chemical, water treatment, and oil and gas. Engineered for long-term stability and repeatable accuracy, the ILT-6000 supports critical applications where precise level control is essential.
What Makes the Direct Insertion Magnetostrictive Level Transmitter Special?
The direct insertion magnetostrictive level transmitter measures liquid levels directly inside tanks or vessels. Its magnetostrictive technology uses a magnetic float along a sensing rod, providing highly accurate readings. The direct insertion method reduces errors caused by external mounting or indirect measurement.
With this design, operators benefit from fast response, excellent repeatability, and minimal maintenance. The robust construction ensures long-term reliability, even in challenging industrial conditions. The sensing element is isolated from process pressure, helping maintain consistent output even in dynamic environments.
Key Features of the ILT-6000 Magnetostrictive Level Transmitter
The ILT-6000 magnetostrictive level transmitter combines precision, durability, and flexibility. It supports loop-powered level transmitter operation, simplifying wiring and reducing energy consumption. The transmitter also integrates easily with process control systems, ensuring seamless operation and compatibility.
The ILT-6000 measures levels without the electronics contacting the liquid, reducing wear and corrosion risks. Its design allows retrofitting into existing tanks or vessels, minimizing downtime during upgrades or maintenance.
Real World Applications
The ILT-6000 is suited for:
- Chemical and petrochemical tanks
- Water and wastewater treatment systems
- Oil storage and separation vessels
- Process tanks with corrosive or high-temperature liquids
Using the ILT-6000 ensures accurate monitoring, reduces maintenance costs, and enhances operator safety. Its high repeatability and precise measurement make it ideal for critical process control environments. The transmitter performs reliably in both atmospheric and pressurized tanks, supporting a wide range of industrial operating conditions.
Upgrade Your Liquid Level Monitoring With Jogler
The Direct Insertion Magnetostrictive Level Transmitter (ILT-6000) from Jogler delivers reliable and precise liquid level measurement for demanding industrial environments. Its advanced design, including loop-powered operation and an isolated sensor design, ensures seamless integration, improved safety, and accurate monitoring. Explore the ILT-6000 to enhance your process control systems today.
Choosing the ILT-6000 from Jogler means investing in dependable performance, simplified installation, and long-term measurement stability. Contact us online or call 1-800-223-8469 to request technical specifications, discuss application requirements, or receive a customized quotation. Enhance your level measurement system with a proven direct insertion magnetostrictive level transmitter built for industrial performance.
