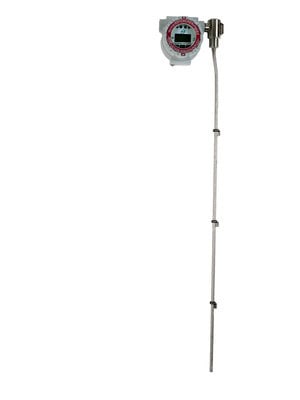

Jogler Model MGT-6000
External Magnetostrictive Level Transmitter
The MGT-6000 series liquid level transmitter is an external magnetostrictive level transmitter specifically designed for use with magnetic level gauges. This loop-powered level transmitter can be widely used on Jogler’s JMG-series gauges and retrofitted to a variety of level gauges. As a non-contact liquid level transmitter, the MGT-6000 provides a reliable, fast, and accurate output signal based on time-of-flight technology for precise process control.
High-Accuracy External Magnetostrictive Level Transmitter

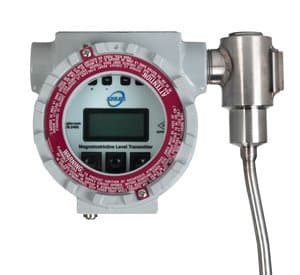

The MGT-6000 magnetostrictive level transmitter is directly mounted to the magnetic level gauge using 316SS band clamps, with top- or bottom-mount electronics options. This design allows the waveguide to be isolated from the actual process pressure and temperature.
Enhanced sensor technology provides an accuracy of 0.01% of full scale. The MGT-6000 external magnetostrictive level transmitter is engineered for easy clamp-on installation, calibration, and troubleshooting. Designed for versatility, the MGT-6000 is compatible with a full range of magnetic gauges and is available with both custom- and standard-mounting brackets.
Features & Specifications
- Accuracy: 0.01% of full scale
- Output: 4-20 mA with HART protocol and LCD display
- Installation: Top- or bottom-mounted electronics with universal custom and standard mounting brackets
- Serviceability: Features a field-removable sensor assembly and a field-replaceable electronics module to simplify maintenance
- Application: Specifically designed as one of the premier transmitters for magnetic level gauges
Benefits and Operational Advantages
An external magnetostrictive level transmitter like the MGT-6000 delivers key benefits for demanding industrial applications. Utilizing time-of-flight magnetostrictive technology, it enables precise and repeatable measurement, reducing the risk of process variation and supporting stable operations. Its non-contact measurement method ensures the mechanical integrity of the system is maintained, making the transmitter ideal for installations where direct media contact must be minimized.
The robust construction of the MGT-6000 is engineered to withstand challenging site conditions commonly found in oil and gas production, chemical processing, petrochemical facilities, water and wastewater treatment, and power generation. The unit’s rugged enclosure protects sensitive electronics from vibration, moisture, dust, and temperature fluctuations frequently encountered in industrial environments.
As a loop-powered level transmitter, the MGT-6000 also simplifies wiring requirements and supports integration into existing plant control systems, including distributed control systems (DCS) and programmable logic controllers (PLCs). Together with its straightforward user interface, LCD, and HART protocol field communication capabilities, this external magnetostrictive level transmitter minimizes commissioning time and ensures ease of use for plant maintenance personnel.
Industry Applications
The MGT-6000 external magnetostrictive level transmitter is widely applied in:
- Oil and Gas: Level measurement for separators, storage tanks, sump tanks, and interface detection in multiphase fluids.
- Chemical and Petrochemical: Inventory management, batch processing, and reactor level monitoring in corrosive and hazardous environments.
- Power Generation: Boiler drum and feedwater tank monitoring, condensate level measurement, and process water clarification.
- Water and Wastewater Treatment: Reservoir level monitoring, clarifier and filter basin applications.
- Pulp and Paper & Food Processing: Storage and process tank level control where high reliability and hygiene are required.
Certifications and Reliability
The MGT-6000 magnetostrictive level transmitter is manufactured to rigorous quality standards at Jogler’s ASME– and ISO 9001-compliant facility. It is tested for vibration, thermal cycling, and environmental sealing to ensure long-term, maintenance-free service. The unit’s robust design and proven performance have led to certifications and approvals suited to hazardous area classification and safety requirements found throughout the process industries.
Order the MGT-6000 External Magnetostrictive Level Transmitter
By choosing the MGT-6000 external magnetostrictive level transmitter, operators achieve improved process visibility, reduced maintenance costs, and increased operational efficiency. Its compatibility with transmitters for magnetic level gauges makes it a preferred solution in both retrofit and new installations.
Contact Jogler online or call 1-800-223-8469 today for additional details, technical support, or a quote. Our team is committed to delivering reliable, high-accuracy solutions for all your level measurement requirements.
