Jogler Model JS-10/JS-30
Magnetic Point Level Switch
The Jogler JS-10 and JS-30 models provide maintenance-free, adjustable level detection as a premier magnetic point level switch solution. Designed for seamless integration, these devices ensure accurate and reliable process control in demanding industrial environments without exposing electrical components to harsh process fluids.
Advanced Magnetic Point Level Switch Technology

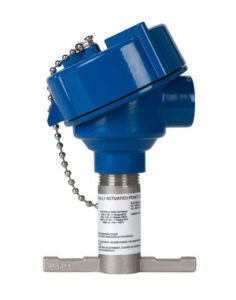

The JS-10 magnetic level switch (1 amp) and JS-30 magnetic level switch (3 amp) are magnetically actuated point level switches. They are specifically engineered as switches for magnetic liquid level indicators. Magnetic coupling through the chamber wall keeps the magnetic point level switch completely isolated from process fluid and pressure. This non-invasive design allows setpoints to be adjusted on the fly without requiring process piping, valves, or system shutdowns.
To ensure consistent operation in challenging plant conditions, an internal bias magnet is utilized to maintain the state of the magnetic point level switch. This unique design prevents false tripping, making the unit an ideal High-vibration magnetic point switch. Furthermore, these devices function as SPDT and DPDT point level switches, available with either a Single Pole Double Throw (one internal switch) or Double Pole Double Throw (two internal switches) configuration to meet specific control requirements.
Key Features of the JS-10 and JS-30
- Maintenance-free operation isolated from process media
- Retrofit capability onto existing magnetic level gauge installations
- Internal bias magnet for high-vibration stability
- Multiple enclosure and contact configurations available
Technical Documentation
Safety and Compliance
Safety and regulatory compliance are critical when selecting process instrumentation. The JS-10 and JS-30 operate effectively as a magnetic point level switch in extreme industrial settings and are engineered to meet stringent requirements for use in hazardous locations. Each unit is available with flying leads (for open-frame installations), an epoxy-coated aluminum enclosure, or a rugged 316 stainless steel enclosure to address a range of environmental and safety demands.
Designed with safety in mind, the magnetic point level switch line features hermetically sealed switching elements that keep all sensitive or energized components completely isolated from process fluids and vapors. This non-invasive arrangement reduces the risk of process leaks or electrical faults, supporting safe operation in classified areas where the presence of flammable gases, vapors, or combustible dusts requires robust preventive controls.
The design’s magnetic coupling ensures activation occurs entirely outside the process vessel, with no need for breaching the containment boundary, further reducing the potential for hazardous exposure and simplifying ongoing inspections and maintenance.
Meeting Industry Standards
The JS-10 and JS-30 meet or exceed industry-recognized safety and compliance standards, including certifications for Class I, Division 1, Groups B, C, D (environments with flammable gases and vapors), Class I, Division 2, Groups A, B, C, D, as well as Class II and III, Groups E, F, G (environments with combustible dusts and fibers).
This broad compliance makes them an ideal choice for chemical refineries, oil and gas production sites, power plants, and similar locations where the highest level of operational safety is a prerequisite.
Jogler’s focus on durable construction and rigorous quality assurance ensures each magnetic point level switch delivers reliable performance even under the most demanding regulatory and process requirements.
These switches are certified for use in the following hazardous location classifications:
- Class I, Division 1, Groups B, C, D
- Class I, Division 2, Groups A, B, C, D
- Class II and Class III, Groups E, F, G
Searching for an Accurate Magnetic Point Level Switch?
For precise, reliable liquid level control tailored to your exact specifications, contact a Jogler representative to request a quote.
