Jogler Model LLT-1000
Laser Level Transmitters

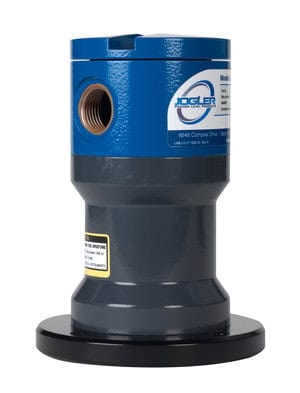

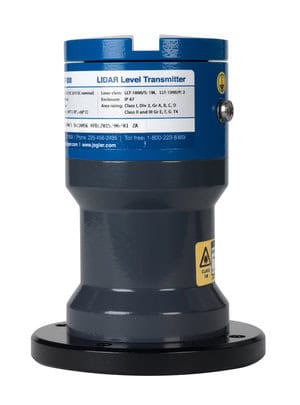

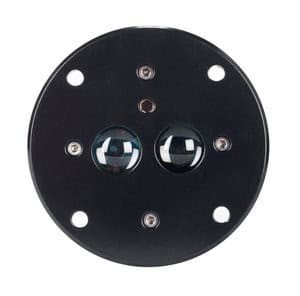

The LLT-1000 LIDAR Level Transmitter is a non-contact, laser based instrument that measures the level of dry solids and opaque liquids in silos, tanks, hoppers, and other vessels. 4-20mA and relay outputs give the LLT-1000 the flexibility to be used in various control schemes.
High-Performance Laser Level Transmitter Technology
The Jogler LLT-1000 measures distance with high accuracy, unaffected by atmospheric temperature, pressure, or humidity. Its narrow beam ensures it can be directed to a specific point within a vessel. At the same time, its high signal-to-noise ratio delivers reliable signals under any lighting conditions and when measuring any color or granularity of surface. As a long-range laser level transmitter, it permits unlimited stand-off distances when measuring in aggressive environments and can even measure through protective windows.
- Maintenance-free / Low cost-of-ownership
- 4-wire transmitter (requires 24VDC)
- Non-contact measurement
- Narrow, accurate beam / long range (up to 330 ft)
- Visible aiming laser (optional)
- Dual compartment enclosure
- Custom mounting options
- Class I, Division 2, Groups A, B, C, D
- Class II and Class III, Groups E, F, G
- ATEX and IEC ratings
Features and Specifications
The LLT-1000 laser level transmitter is designed for performance and user-friendly operation in challenging industrial environments.
- Measurement Principle: Time-of-Flight laser technology for fast and accurate readings.
- Accuracy: +/- 0.5 inches for precise process control.

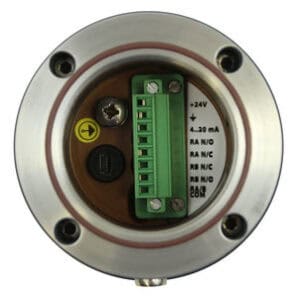

- Outputs: Features multiple outputs, including 4-20 mA and 2 configurable relays (NO/NC), for versatile integration.
- Configuration: An on-board Mini-USB interface and user-friendly Jogler Terminal software allow for comprehensive configuration.
- Approvals: Certified for use in hazardous locations in the United States, Canada, and Europe (ATEX).
- Enclosure: Housed in a powder-coated aluminum, IP67-rated enclosure for durability.
Applications
The versatility of the LLT-1000 makes it an ideal solution for level measurement across numerous industries. Common applications include:
- Dry Bulk Foods & Pet Food
- Plastics & Aggregates
- Chemicals & Dirty Liquids
- Positioning Applications
The LLT-1000 level transmitter offers multiple outputs and a user-friendly configuration process for easy integration into various industries. With its certifications for use in hazardous locations and durable enclosure, this transmitter is suitable for a wide range of applications.
LLT-1000 Theory of Operation: Click to expand
