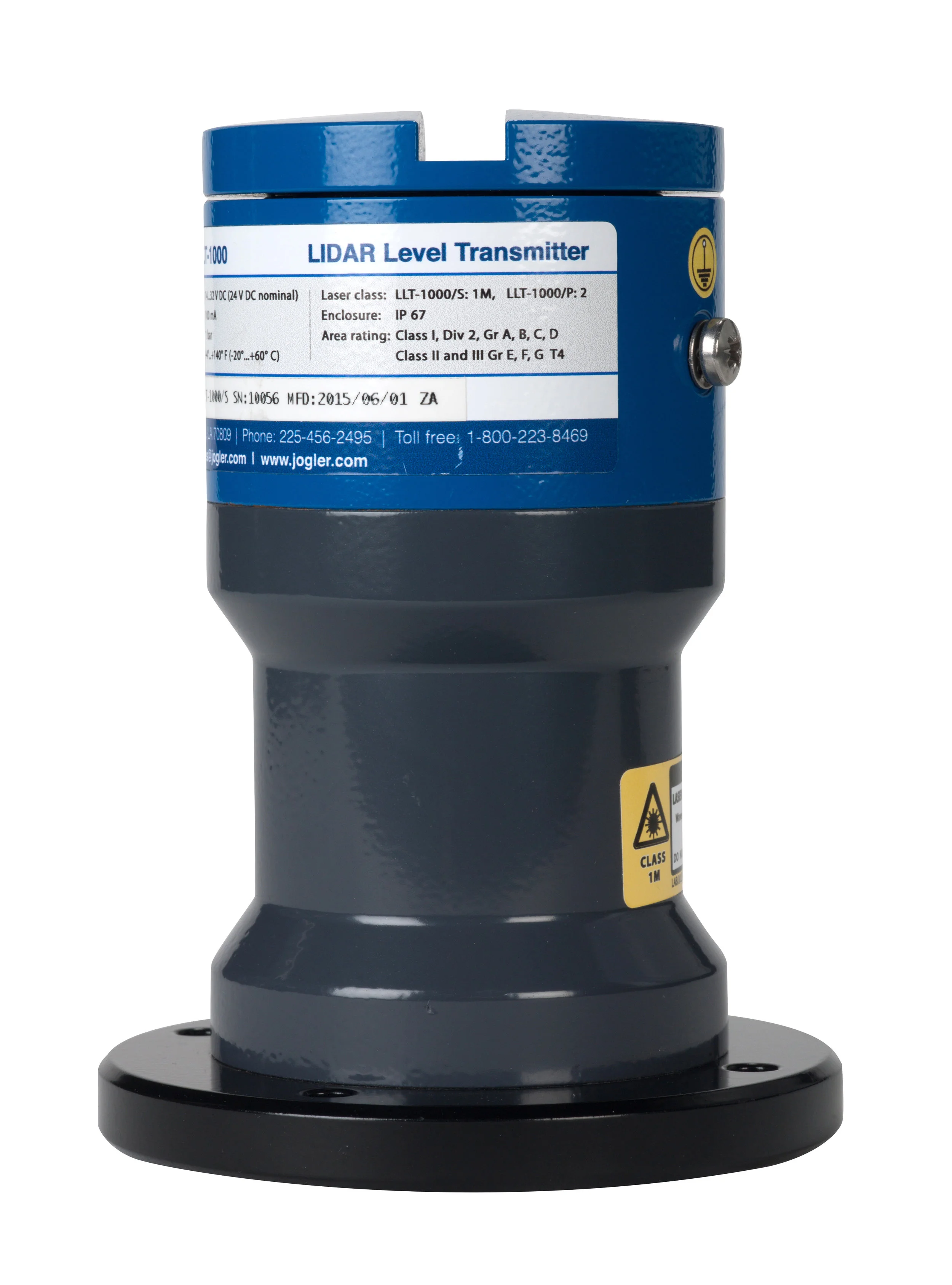

Laser Level Transmitter (LLT-1000)

Model LLT-1000
Laser Level Transmitter

The LLT-1000 LIDAR Level Transmitter is a non-contact, laser based instrument that measures the level of dry solids and opaque liquids in silos, tanks, hoppers, and other vessels. 4-20mA and relay outputs give the LLT-1000 the flexibility to be used in various control schemes.

4-wire transmitter (requires 24VDC)
Non-contact measurement
Narrow, accurate beam / long range (up to 330 ft)
Visible aiming laser (optional)
Dual compartment enclosure
Custom mounting options
Class I, Division 2, Groups A, B, C, D
Class II and Class III, Groups E, F, G
ATEX and IEC ratings
Maintenance-free / Low cost-of-ownership

QUICK LINKS:

+ LLT-1000 Data Sheet / IOMM

+ LLT-1000 ATEX Certificate

+ LLT-1000 FM US Certificate

+ LLT-1000 FM Canada Certificate

+ Jogler Terminal Software

+ Find an Authorized Sales Representative

LLT-1000 Theory of Operation: Click to expand — LLT-1000 Theory of Operation: Click to expand
